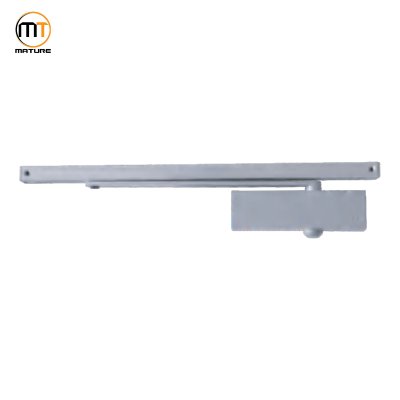

Conceal Door Closer DC-203SL
SKU : dc-203sl
āļāļēāļĒāđāļĨāđāļ§ 0 āļāļīāđāļ
āđāļāļĢāļāļāđ: Mature Lock
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē

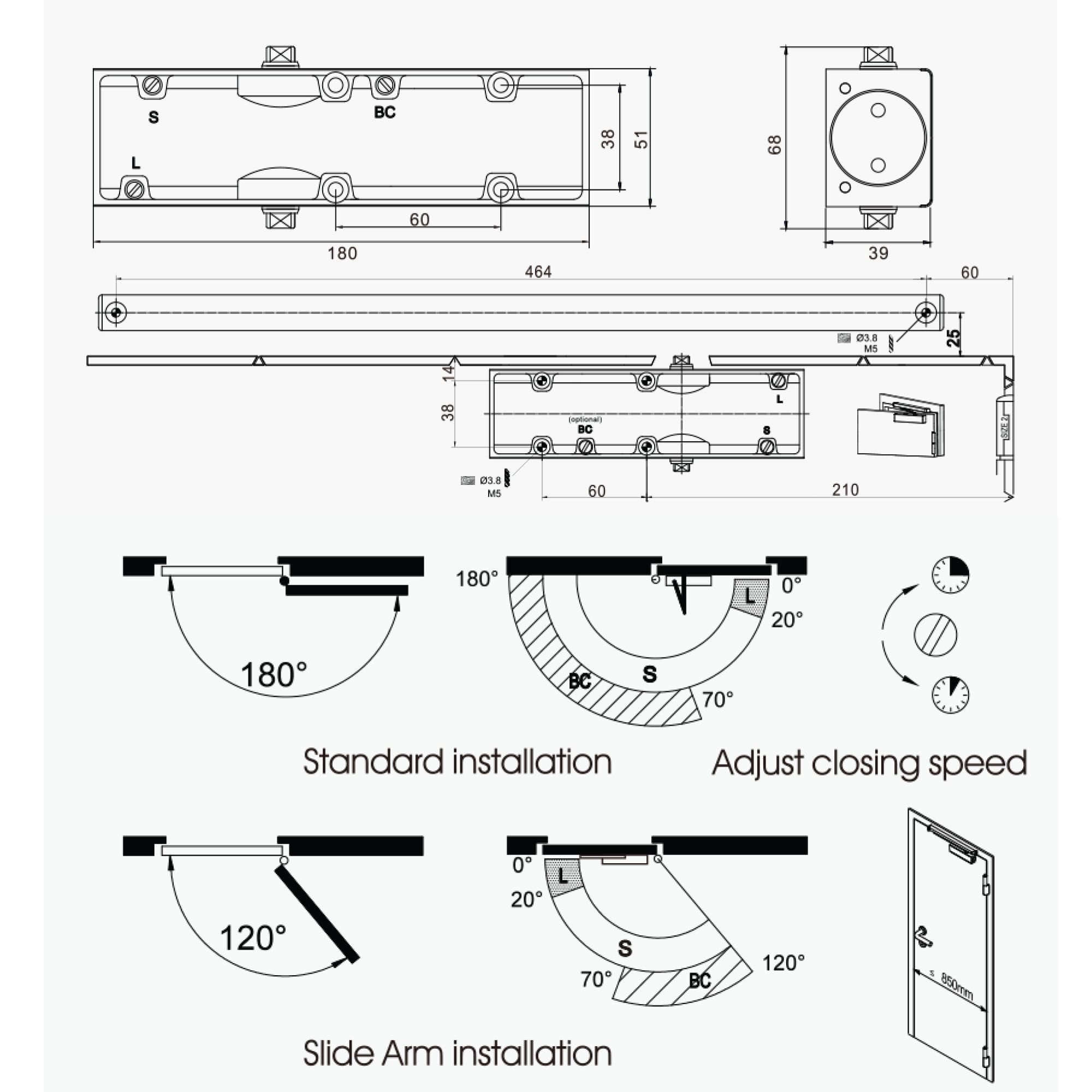

Technical Specifications:
Door Capacity: Suitable for door weights ranging from 25 kg to 45 kg Door Width: Optimized for doors with a maximum width of 850 mm.
Body Material: Precision cast aluminum alloy with a needle bearing for smooth operation.
Features:
Dual Speed Valves: Features two independent adjustment valves:
Closing Speed: Controls the door from maximum open angle down to approximately 15°.
Latching Speed: Controls the final 15° to 0° to ensure the door latches securely without slamming.
Closing Speed: Controls the door from maximum open angle down to approximately 15°.
Latching Speed: Controls the final 15° to 0° to ensure the door latches securely without slamming.
Opening Angle: Supports a maximum opening angle of 180°.
Fire Rating: UL 10C listed and CE certified for use on fire-rated doors (up to 3 hours).
Handing: Non-handed design, making it suitable for both left-hand and right-hand opening doors.
